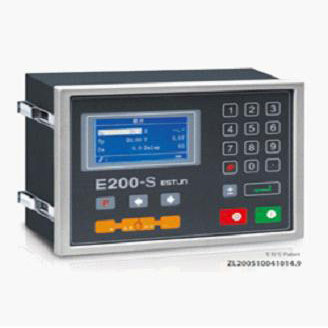

Estun E200 CNC Screen Control

Product Description
Based on the controlling function of E20, E200 press brake controller is specially developed with the most up-to-date electronic technology to control back gauge and dead block of conventional press brakes.

Single key operation for switching-over between different functions, user-friendly operation interfaces and more screen information are available for customers to make programming, parameter setting and automatic processing operations more easily, conveniently and rapidly.

With patented driving control technology of Estun and CAN bus interface for connecting to Estun's own EDC series of AC servo system, performances are fully played.

English/Chinese selection and inch/mm selection are available

to meet different requirements of customers from different countries.

The controller has passed the strict EMC testing and has been certified by

CE with approval of TUV Rheinland Group in Germany.

Main features:

● Bright LCD display, 240×128
● Multiple working steps programmed at one time and executed automatically, continuous positioning available
● Automatic retraction to avoid possible impacts between work-piece and back gauge
● One side positioning, screw gap is eliminated
● Inch/mm selection
● Position compensation
● Power down position memorization
● Automatic searching for reference points and power down position memorization are offered to customer as options
