Q35Y series Hydraulic Steel Worker

Q35Y series Hydraulic Steel Worker

0.00
0.00

Product Description

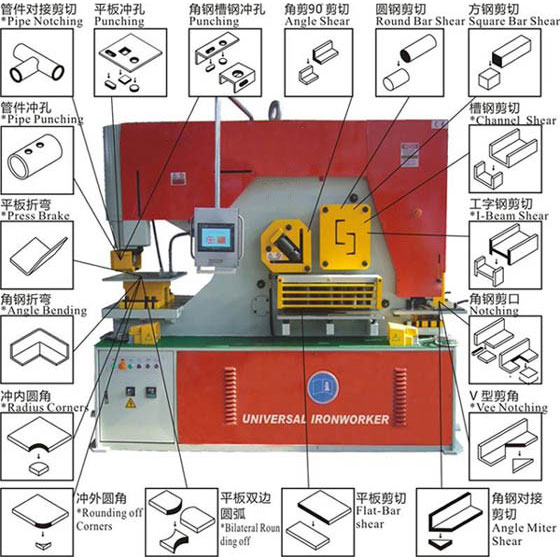

Using hydraulic transmission, is the home of the Joint punch machine-to-date products, can sheet, steel square, round bar, angles, channels, circles, for I-beam shear, punching, die cutting, and is equipped with devices expected to cut off .

◆ technical parameters:

Model
Q35Y-16
Q35Y-20
Q35Y-25
Q35Y-30
Chong pressure (tons)
55
75
110
140
Can cut the largest thickness (mm)
16
20
25
30
Sheet strength (N / mm 2)
≤ 450
≤ 450
≤ 450
≤ 450
Shear angle
7° 7 °
8° 8 °
8° 8 °
8° 8 °
Shears first trip size (width * thick) (mm)
16*250
8*400
20*330
10*480
25*330
16*600
30*355 20*600
Slider trip
80
80
80
80
The number of trips (times / min)
8
8
6
6
I throat depth (mm)
300
355
400
600
Punching thickness (mm)
16
20
25
26
Punching the largest diameter (mm)
25
30
35
38
The main electrical power (kW)
4
5.5
7.5
11
Size (L * W * H) mm
1640*730*1770
1640*800*1900
2355*960*2090
2680*1040*2300
Machine weight (kg)
1600
2000
4800
6800

I-beam, channel, it would take special orders.

The type of steel
Round
Fang Gang
Equilateral angle steel
T-shaped steel
Public-shaped steel
Channel
90° 90 ° cut
45° 45 ° cut
90° 90 ° cut
45° 45 ° cut
Section
Q35Y-16
45
40*40
125*125*12
70*70*8
120*120*12
60*60*8
126*74*5
126*53*5.5
Q35Y-20
50
50*50
140*140*12
70*70*10
140*140*12
70*70*10
160*86*6
160*60*6.5
Q35Y-25
60
50*50
160*160*14
80*80*7
160*160*14
80*80*10
200*102*9
200*75*9
Q35Y-30
65
55*55
180*180*16
80*80*10
180*180*16
80*80*10
280*124*10.5
280*86*11.5
Q35-16
45
40*40
125*125*12
100*100*10
125*125*12
100*100*10
180*94*6.5
180*68*7
QA34-25
65
55*55
150*150*18
110*110*14
150*150*18
110*110*14
300*126*9
300*85*7.5
