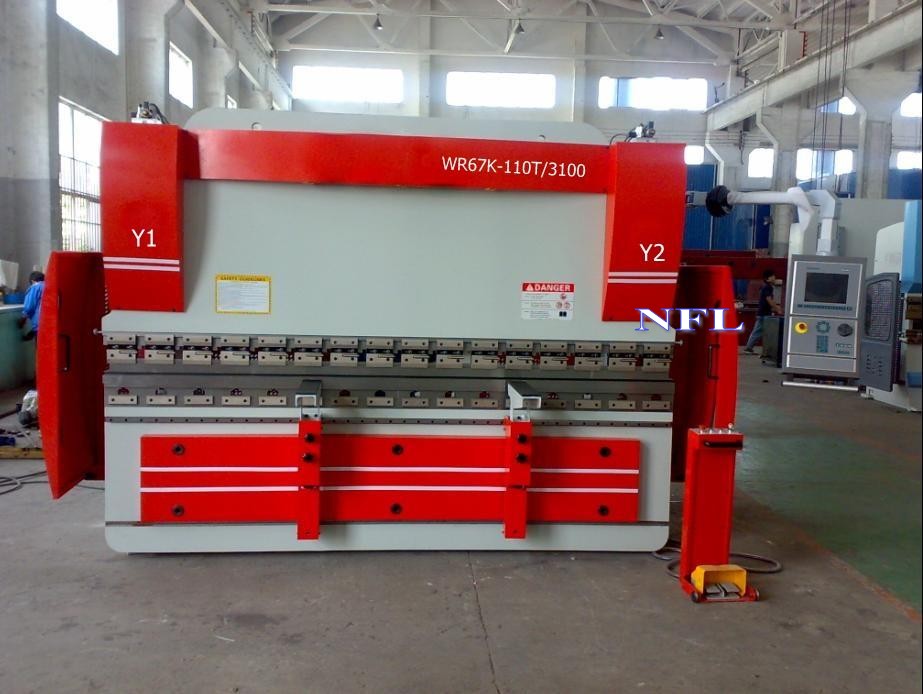

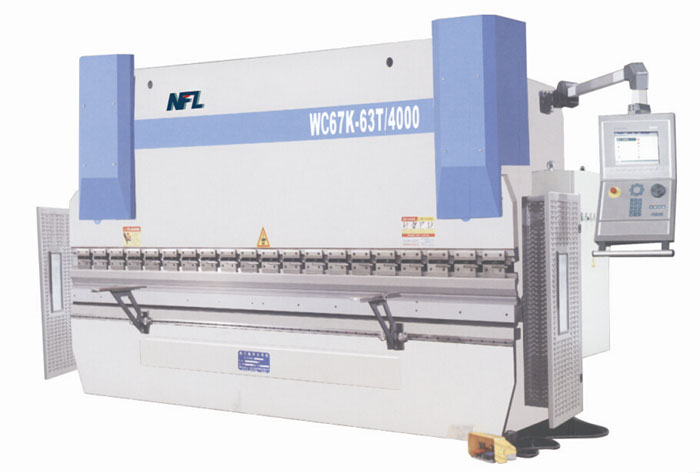

PPB series Electrohydraulic CNC synchro Press Brake

PPB series Electrohydraulic CNC synchro Press Brake

0.00
0.00

Product Description





Models Nomal Pressure
(Kn)
Length of Table (mm) Distance Between Housing (mm) Throat Depth (mm) Stroke (mm) Open Hight (mm) Main Motor (Kw) Weight (t) Overall Dimensions
(L × W × H) (mm)
63/2500 630 2500 2000 320 150 380 5.5 5 2875×1650×2350
63/3200 630 3200 2700 320 150 380 5.5 5.5 3800×1650×2450
100/3200 1000 3200 2700 400 180 440 7.5 7.5 3810×1750×2530
125/3200 1250 3200 2700 400 180 440 7.5 8.2 3820×1800×2530
125/4000 1250 4000 3200 400 180 440 7.5 9 4600×1800×2580
160/3200 1600 3200 2700 400 180 450 11 10.8 3830×1870×2560
160/4000 1600 4000 3200 400 180 450 11 11.5 4610×1920×2700
200/3200 2000 3200 2700 400 180 450 11 12.5 3900×1920×2560
200/4000 2000 4000 3200 400 180 450 11 13.8 4620×1950×2700
200/6000 2000 6000 4800 400 180 480 11 18.5 6080×1950×2900
250/3200 2500 3200 2700 400 200 480 15 15 3900×2150×2950
250/4000 2500 4000 3200 400 200 480 15 16.5 4080×2150×3000
250/5000 2500 5000 4000 400 250 560 15 17.5 5080×2200×3250
250/6000 2500 6000 4800 400 250 560 15 20 6080×2200×3400
300/4000 3000 4000 3200 400 250 560 22 19 4080×2200×3200
300/5000 3000 5000 4000 400 250 560 22 21 5100×2200×3300
300/6000 3000 6000 4800 400 250 560 22 24 6200×2200×3500
400/4000 4000 4000 3200 400 320 630 30 25 4100×2400×3500
400/5000 4000 5000 4000 500 320 630 30 28 5200×2600×3700
400/6000 4000 6000 4800 500 320 630 30 38 6200×2650×4800
500/4000 5000 4000 3200 600 320 630 37 40 4200×2800×4600
500/5000 5000 5000 4000 600 320 630 37 45 5200×2800×4900
500/6000 5000 6000 4800 600 320 630 37 50 6200×2800×5200
600/5000 6000 5000 4000 600 320 630 45 58 5200×3000×5300
600/6000 6000 6000 4800 600 320 630 45 63 6200×3000×5600
800/5000 8000 5000 4000 700 350 800 55 75 5200×3500×5600
800/6000 8000 6000 4800 700 350 800 55 85 6200×3500×5800
700 400 800 55 105
