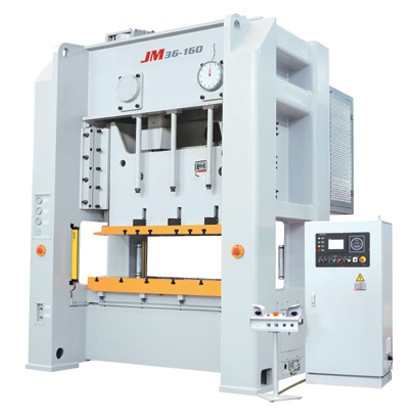

JM36/JMD36 series gantry type double-point press

JM36/JMD36 series gantry type double-point press

Product Description

1. Welded Steel plate framework with high intensity of machine body.

2. Double crankshaft pitmen totally eliminating side forces by reverse rotation.

3. Dry type friction clutch and brake,combined wet multi discs friction clutch and brake is optional.

4. Equipped with hydraulic overload protecting device.

5. Eight-side lengthened guide with high precision.

6. Electric shut height adjustment with digital display.

7. Equipped with lifting balance cylinder.

8. Duplex valves imported.

9. Electric compelling grease lubrication system.

10. Balancing cylinder adopts manual lubrication system.

11. One set of blowing device.

12. Controlled by PLC with international brand.

13. Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from international brand.

14. Electronic cam device with intelligent top dead center stop function and several safety function.

15. Optional air cushion device, NC feeding machine, light curtain and inverter with international brand to fulfill stroke adjustment.

16. JMD36 series equipped with multi pitmen framework, suitable for flat stretching.
