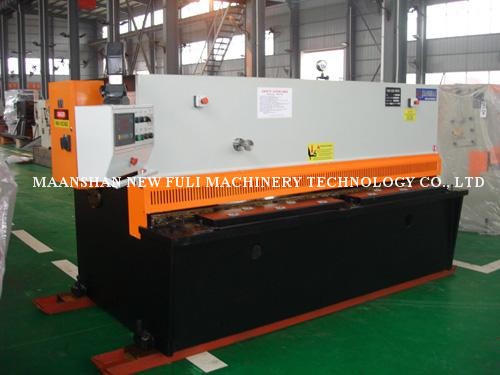

QC12K series hydraulic CNC shearing machine

QC12K series hydraulic CNC shearing machine

0.00
0.00

Product Description
The mainframe is fitted with numeric-control system special for shearing machines.

-The position of rear stopper is displayed in a real-time manner.

-Multi-step programming function is available and the rear stopper is able for automatic operation and continuous positioning,to achieve an automatic adjustment for position of rear stopper.

-It is provided with counting function for shearing ,to display the shearing numbers in a real-time manner,able for power-failure memory of position of rear stopper ,procedures,and parameters.

-Imported ball bearing lead screw and linear guide rail are used,to ensure the positioning precision,so that the processing precision of machine is higher.

Type Thickness
（mm） 		Width
（mm） 		Cutting Angel Material Intension
（KN/cm） 		Rear stopper adjustement （mm） Travel times (T/Min) Main power (Kw) Weight (Kg) Overall dimension (L×W×H)mm
4×2500 4 2500 1°30′ ≤450 20-500 16 5.5 5000 3040×1610×1620
4×3200 4 3200 1°30′ ≤450 20-500 13 5.5 6000 3840×1610×1620
4×4000 4 4000 1°30′ ≤450 20-600 10 5.5 7000 4600×1700×1700
4×6000 4 6000 1°30′ ≤450 20-600 5 7.5 16000 6460×2100×3200
6×2500 6 2500 1°30′ ≤450 20-500 15 7.5 6000 3040×1610×1620
6×3200 6 3200 1°30′ ≤450 20-500 12 7.5 7000 3840×1610×1620
6×4000 6 4000 1°30′ ≤450 20-600 9 7.5 8300 4620×1750×1700
6×5000 6 5000 1°30′ ≤450 20-600 8 7.5
6×6000 6 6000 1°30′ ≤450 20-800 5 11 18500 6480×2100×2300
8×2500 8 2500 1°30′ ≤450 20-500 14 7.5 7000 3040×1700×1700
8×3200 8 3200 1°30′ ≤450 20-500 8 7.5 7500 3860×1700×1700
8×4000 8 4000 1°30′ ≤450 20-600 8 7.5 8500 4640×1700×1700
8×5000 8 5000 1°30′ ≤450 20-600 8 7.5 11500 5400×2400×2000
8×6000 8 6000 1°30′ ≤450 20-800 8 11 20000 6480×2100×2350
10×2500 10 2500 1°30′ ≤450 20-500 10 11 7300 3040×1700×1700
10×3200 10 3200 2° ≤450 20-500 10 11 8000 3860×1700×1700
10×4000 10 4000 2° ≤450 20-600 10 11 12050 4650×2100×2000
10×6000 10 6000 1°30′ ≤450 20-600 10 15 24000 6500×2100×2300
12×2500 12 2500 1°40′ ≤450 20-500 12 18.5 11000 3140×2150×2000
12×3200 12 3200 1°40′ ≤450 20-500 10 18.5 12500 3880×2150×2000
12×4000 12 4000 1°40′ ≤450 20-600 10 18.5 14500 4680×2150×2000
12×5000 12 5000 2° ≤450 20-600 6 18.5 19000
12×6000 12 6000 2° ≤450 20-1000 5 18.5 26000 6900×2600×2700
16×2500 16 2500 2° ≤450 20-500 10 18.5 12000 3140×2150×2000
16×3200 16 3200 2° ≤450 20-600 10 18.5 13500 3880×2150×2000
16×4000 16 4000 2°30′ ≤450 20-800 10 18.5 16000 4650×2150×2200
16×5000 16 5000 2° ≤450 20-1000 6 18.5 25000 5900×2600×2700
16×6000 16 6000 2° ≤450 20-1000 5 22 32000 6900×2700×2700
20×2500 20 2500 3° ≤450 20-500 8 22 18000 3440×2300×2500
20×3200 20 3200 3° ≤450 20-1000 8 22 23000 4150×2350×2700
20×4000 20 4000 3° ≤450 20-1000 5 22 22000 4850×2600×2400
20×6000 20 6000 3° ≤450 20-1000 4 22 47000 6700×3000×3000
25×2500 25 2500 3° ≤450 20-1000 8 37 25000 3200×2700×2900
25×3200 25 3200 3° ≤450 20-1000 5 37 26000 4200×2500×2600
30×2500 30 2500 3° ≤450 20-1000 4 37 28000 3300×2900×3000
30×3200 30 3200 3°30′ ≤450 20-1000 4 40 34000 4200×2500×2600
40×2500 40 2500 4° ≤450 20-1000 3 75 46000 3200×3300×3200
40×3200 40 3200 4° ≤450 20-1000 3 90 58000 4300×3300×3000
