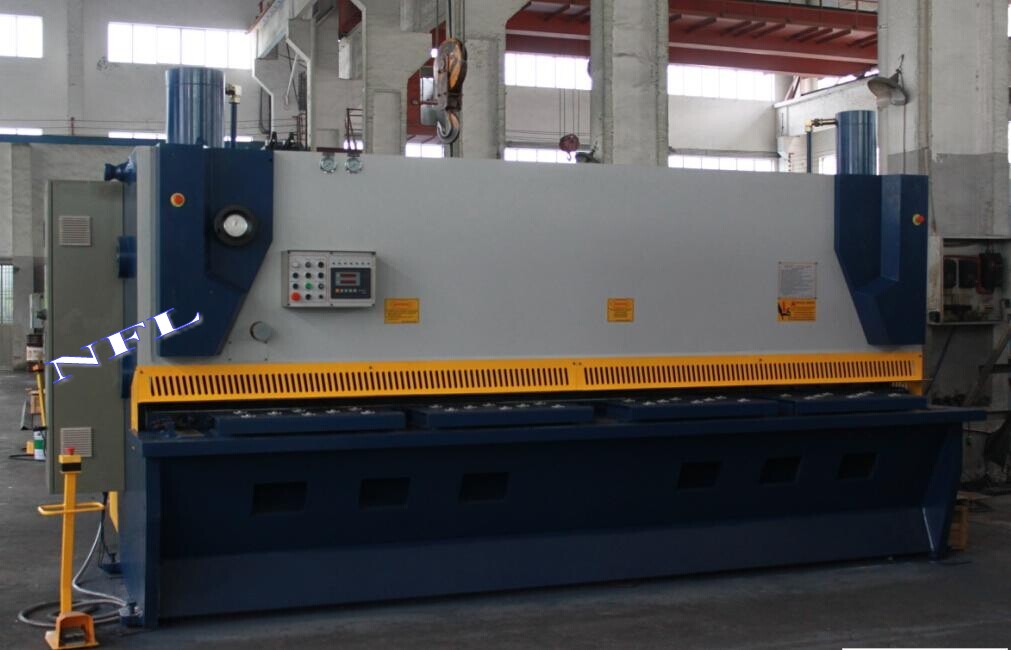

QC11Y - Hydraulic guillotine shearing machine

QC11Y - Hydraulic guillotine shearing machine

0.00
0.00

Product Description
-The entire machine is in fully steel welded structure, with stress eliminated by vibration aging technology, typical of excellent rigidity and stability.

-Advanced hydraulic integrated valve block is employed, and the pipeline connection is minimized in a compact structure, to enhance the system reliability and maintainability.

-Oil cylinders in series ensures the shearing angle not to change during the shearing process of the machine tool.

-Accumulator return is stable and fast.

-Blade gap is adjusted with handwheel, in an accurate, rapid, and easy way.

-The shearing angle is adjustable, to minimize the distortion of sheet bar.

-Electric rear stopper and position display can be easily and accurately operated.

-Rolling material support ball is set, to minimize fish tail with sheet bar and to reduce frictional resistance.

Model

Cutting time
( T/Min)

Back stopper adjust (mm)

Cutting angle (°)

Depth of Throat (mm)

Main motor (kw)

Weight /Approx(kg)

Dimension(L×W×H)(mm)

QC11Y-6×2500
10-25
20-600
0.5-1.5
100
7.5
6,500
3030×2075×1920
QC11Y-6×3200
10-25
20-600
0.5-1.5
100
7.5
7,200
3730×3075×1920
QC11Y-6×4000
10-25
20-600
0.5-1.5
100
7.5
8,500
4530×2075×2080
QC11Y-6×5000
8-20
20-800
0.5-1.5
100
7.5
13,000
5530×2075×2310
QC11Y-6×6000
8-20
20-800
0.5-1.5
100
11
16,000
6530×2075×2310
QC11Y-7×7000
6-15
20-800
0.5-1.5
100
11
21,000
7530×2075×2830
QC11Y-8×2500
10-25
20-600
0.5-1.5
100
11
7,000
3040×2075×1920
QC11Y-8×3200
10-25
20-600
0.5-1.5
100
11
8,100
4080×2075×1920
QC11Y-12×2500
6-20
20-800
0.5-2
100
18.5
11,000
3110×2575×2210
QC11Y-12×3200
6-20
20-800
0.5-2
100
18.5
15,000
3810×2575×2420
QC11Y-12×4000
6-20
20-800
0.5-2
100
18.5
17,000
4610×2575×2530
QC11Y-13×8000
4-15
20-800
0.5-2
500
30
58,000
9050×2910×3300
QC11Y-16×2500
5-15
20-800
0.5-2.5
100
18.5
13,000
3130×2655×2200
QC11Y-16×4000
5-15
20-800
0.5-2.5
100
18.5
19,000
4630×2655×2570
QC11Y-20×2500
5-15
30-800
0.5-3
100
22
15,000
3160×2855×2300
QC11Y-20×4000
4-15
30-800
0.5-3
100
37
23,000
4660×2855×2520
QC11Y-25×2500
4-15
40-800
0.5-3.5
100
37
19,000
3160×2900×2700
