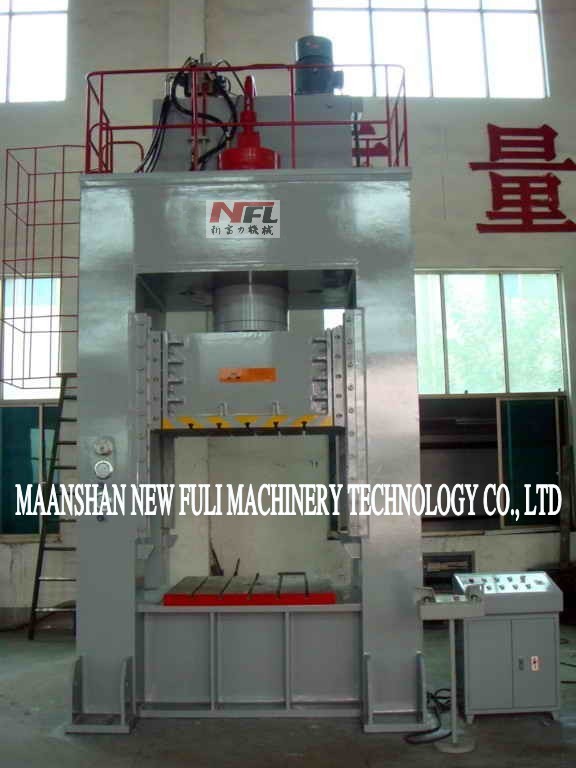

H Frame Hydraulic press

H Frame Hydraulic press

0.00
0.00

Product Description
Function:
This machine is suitable for large, medium and small enterprises, factories, mining and automotive repair shop, heavy machinery, flanges, belt drive, shaft bushings, bearings disassembly operations, straightening correction, bending, coupled with mold Punching, blanking, drawing, folding replace the old spiral-shaped hand press for pressing operations, truly a multi-purpose machine.
Features: Pressure gauge displays the system pressure. The use of advanced steel welding technology, up and down a large space, easy work of repression, working pressure can be preset, can be equipped with electronic digital Tonnage display (optional), hydraulic system cooling device (optional). The machine table can be moved up and down, greatly expanding the opening and closing machine height, easier to use.

Field of application:
Gantry frame type hydraulic machine is a ship plate bending, flanging, beading, folding, straightening equality repression cold forming equipment, mainly used for the ship's skin forming, pressing groove next door, marine tanks and other hot and cold forming processing technology, but also petrochemical, boiler and other industries thick molding processing of key equipment.
Electrical control system: The machine's power three-phase four-wire, voltage 380V, 50Hz, the control circuit is AC 220V, LED circuit is 24V, the solenoid valve control voltage is AC 220V.
1, the machine has a special electrical box installed in the shop on the ground, away from the host location can be requested as needed.
2, a button box set, complete "hands repression", "emergency stop" function.
3, the main electrical control components are well-known brands. Special requirements or specific brands can be customized.

Machine structure:
1 host using these products composite frame gantry high rigidity body structure, both conventional pressing pressure head, another head and rotary table can be moved and pressed structure to meet all kinds of different sizes forming thick the need for accuracy.
2 hydraulic control system consists of dedicated integrated cartridge valve assembly proportion of imports constituted pumps and various proportional valve, the pressure head velocity and pressure within the range specified in the parameter adjusted, with controlled pressing process.
3. Electronic control system consists of a computer and PLC control, with full stroke position capture and detection devices, digital overload mechanically driven digital control and repression, and the pressing process parameters setting, store, print records, etc., to ensure thick molding accuracy.
4 The product has a lifting device and plate conveyor roller device to increase the efficiency of sheet metal forming; Modified products also have slipped under the head to prevent pressure hydraulic locking devices and remote remote control functions.
Frame type hydraulic machine adopts steel structure, the vibration aging treatment so that the mechanical deformation is small. Rack design by finite element analysis, with high rigidity, high accuracy. Table height can be adjusted. Pressure adjustable, adjustable stroke

Specification
Unit
Value
Main pressure
Kn
500
800
1000
Working pressure
Mpa
25
25
25
Slider stroke
mm
400
500
500
Daylight
mm
600
800
800
Work table
Mm
600×400
700×500
800×600
Power motor
KW
4
5.5
5.5
Fast down speed
Mm/s
100
100
100
Work speed
Mm/s
20
20
20
Return speed
Mm/s
80
80
80
Machine weight
Kg
4000
5000
6000
Machine dimension
F-R×L-R× H
950×500×2250
1000×500×2300
1040×600×2400
