J25/JH25 series open back double point press with high perfo

Product Description

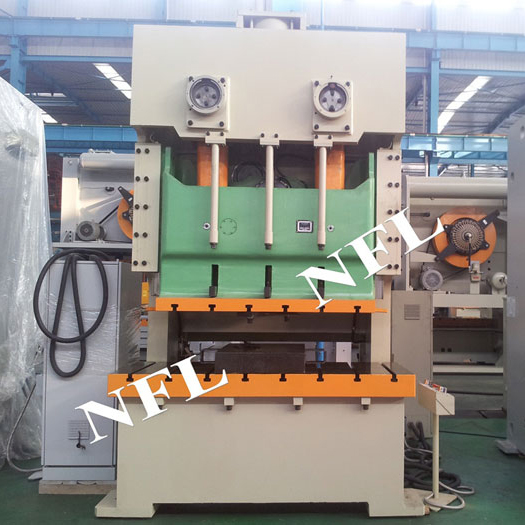

J25/JH25 series open back double point press with high performance

■ Welded body with steel plate and high intensity
■ Suitable for multiple dies automatic line and multi level dies continuous punching
■ Double crankshaft pitmen totally eliminating side forces by reverse rotation
■ Combined wet multi discs friction clutch and brake
■ Cluster gear adopts the flooding oil lubrication
■ Six-face rectangle lengthen guide.
■ Equipped with hydraulic overload protecting device.
■ Adopts electric shut height adjustment with digital display
■ Equipped with lifting balance cylinder
■ Duplex valves imported from Japan.
■ Electric compelling grease lubrication system.
■ Controlled by PLC with international brand
■ Buttons,indicators,AC contactors,air circuit breakers and other controlling devices are imported from international brand.

Equipped with optional air cushion device,photoelectric protector,wich can used to work with various automatic equipments.

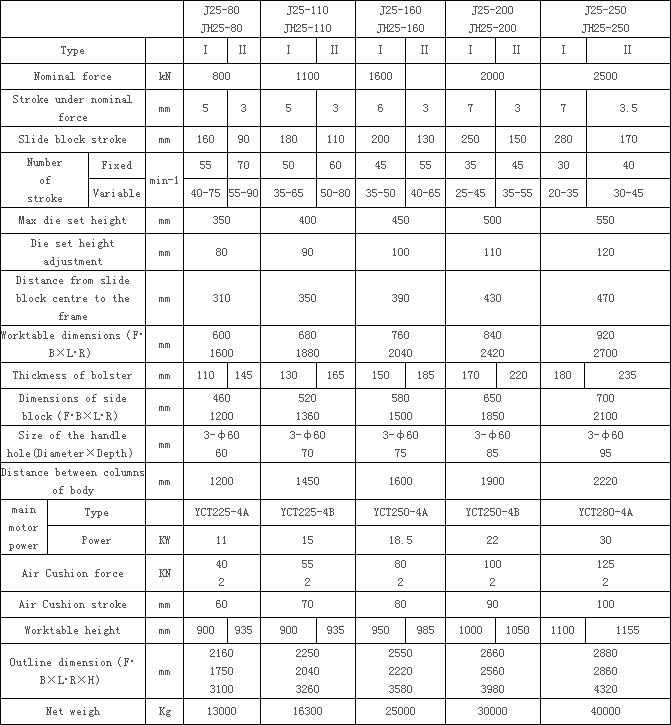

Ⅰtype specifications is for standard product,Ⅱtype specifications is for customized product.

JH25 series adopts combined dry friction clutch and brake with imported band,fixed stroke,the other specifications are the same as J25 series.
